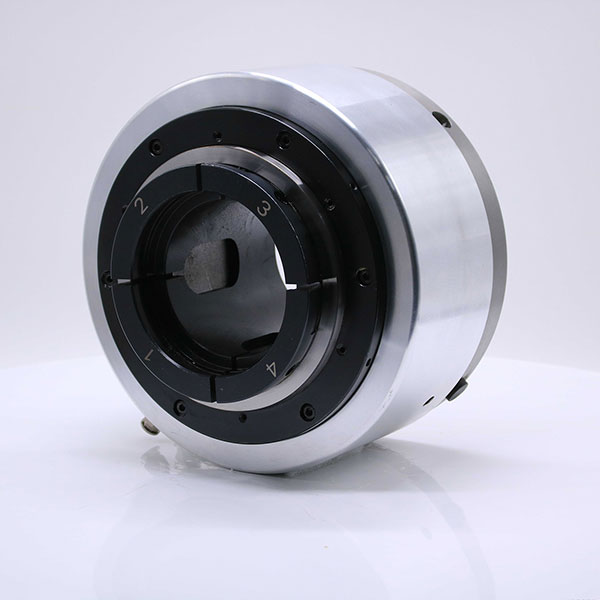

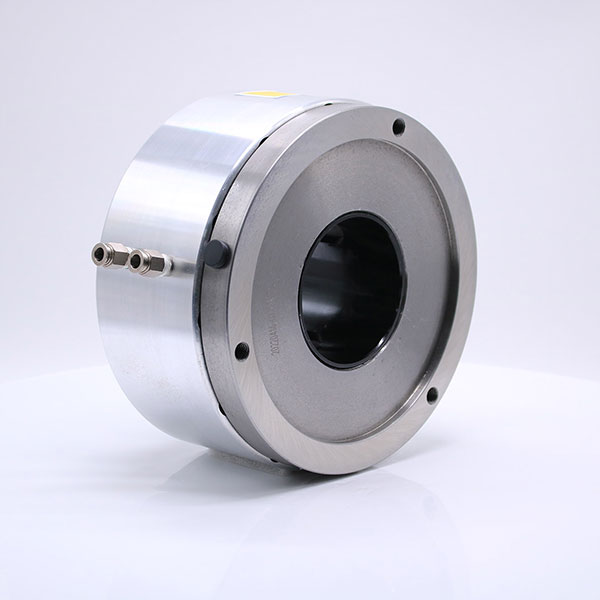

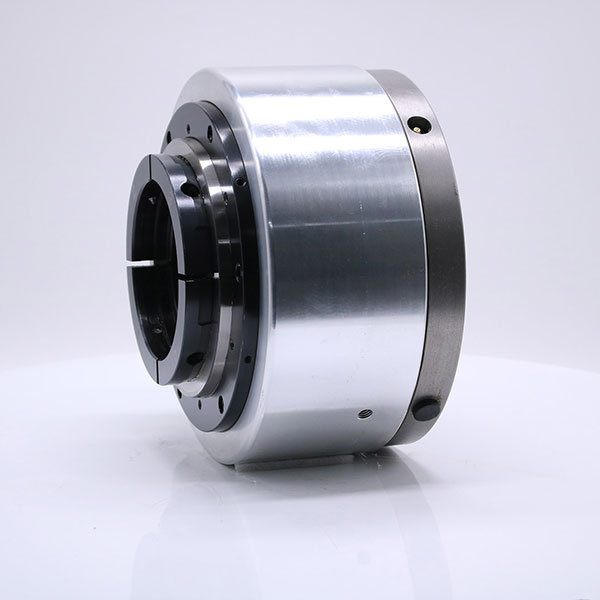

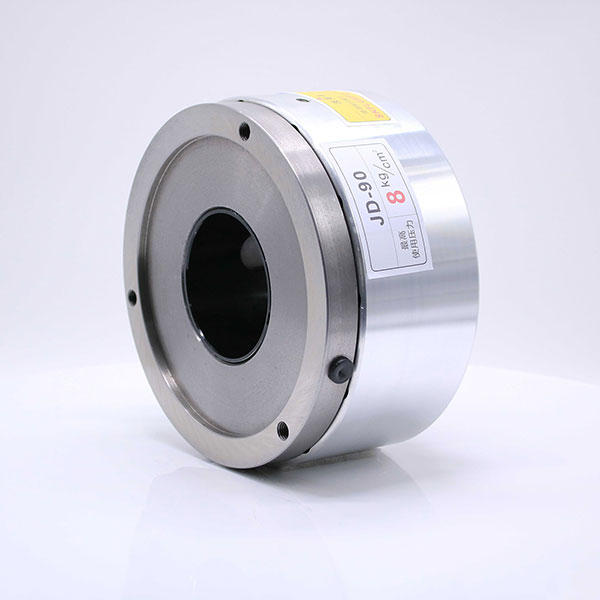

Model 90 laser chuck

90型号激光卡盘

13380269599 WeChat

Product Description产品简介

The front mounted pneumatic laser chuck is suitable for laser pipe cutting equipment and rotary cutting of round and square pipes. It is widely used in laser cutting, ceramic industry, military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, other civil machinery and other fields.

Application Scope应用范围

Product Specification产品规格

Please swipe left and right to view the following product specification parameters.

Model(型号)	A	B	C	D	E	F	G	H	I	J	Screw(安装螺丝)	Max speed(最高转速)	Working pressure(工作气压)	Clamping force(夹持力)
HY-40	95mm	65mm	48mm	155mm	192mm	Φ172	5	20mm	212mm	125mm	3H-M10	1600	0.5-0.7MPa	19KN
HY-70	136mm	105mm	68mm	155mm	192mm	Φ172	5	20mm	227mm	140mm	3H-M10	1400	0.5-0.7MPa	21KN
HY-90	136mm	105mm	90.5mm	190mm	230mm	Φ210	6	23mm	236mm	148mm	3H-M12	1100	0.5-0.7MPa	23KN
HY-120	168mm	140mm	120.5mm	190mm	235mm	Φ210	6	20mm	285mm	166mm	3H-M12	900	0.5-0.7MPa	35KN

* [Note] The above data are standard parameters and will not be notified if they are changed in the future.

* To the extent permitted by law, Foshan Nanhai Haiyu Electromechanical Industry Co., Ltd. reserves the right of final interpretation of all data.
