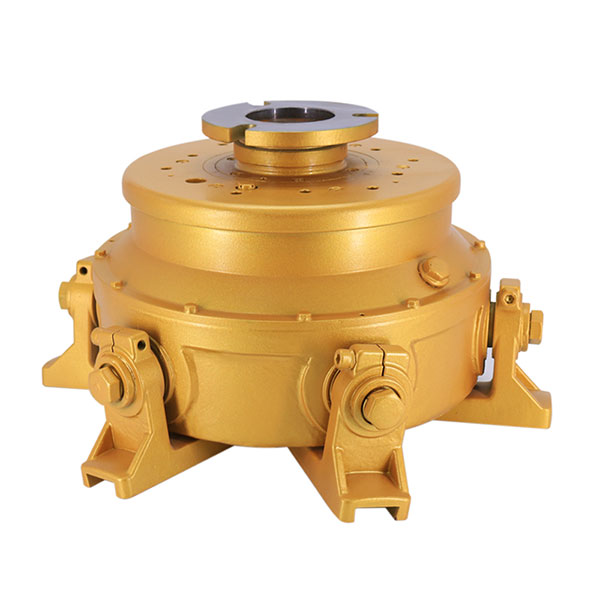

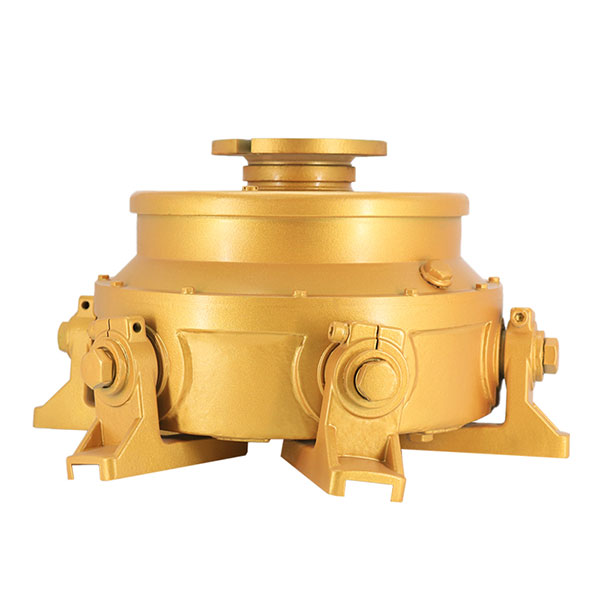

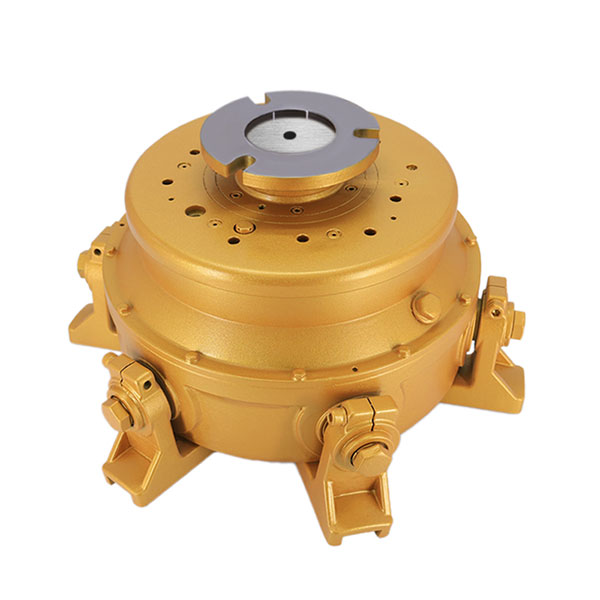

HY262E polishing head
HY262E抛光磨头
Product Description产品简介
HY262E Polishing Head is a swash plate drive grinding structure, which has simple structure, easy maintenance and low failure rate. It can be used in ceramic polished tile production line and stone production line.
Application Scope应用范围

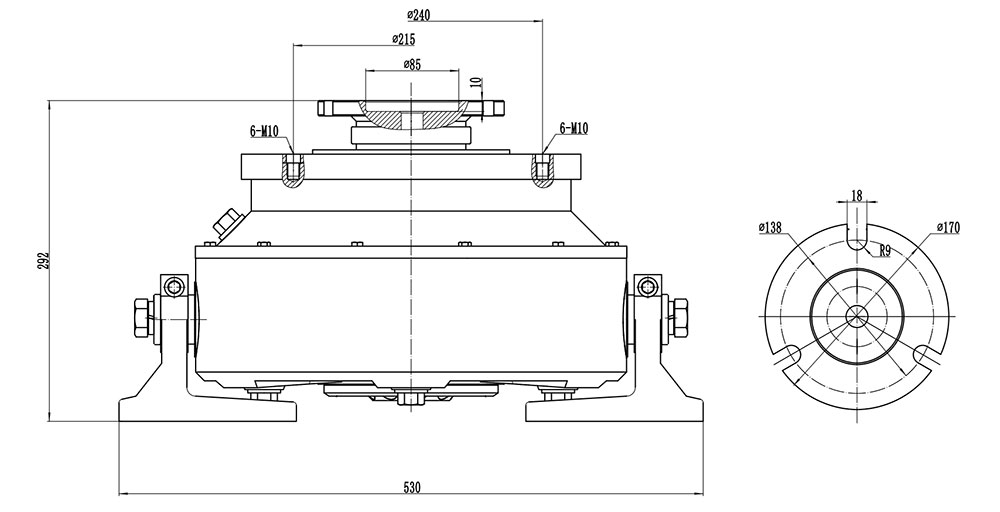

Product Specification产品规格
| Model | Polishing grinding block | Body material | MAX. rotary diameter | MIN. head rotation speed | MAX. head rotation speed | Overall height | Diameter of main shaft | DIA. For mounting spigot of main shaft | Connecting hold for main shaft | Center distance | Net weight | Matching power | Swing frequency of grinding block feet | Abrasives Length | Griding Block | Lubrication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY262E | 6 PCS | Cast Aluminum Alloy / Cast Iron | Ø534mm/480mm | 400 RPM/MIN. | 550 RPM/MIN. | 300.5MM | Ø170MM | Ø85MM | 3 x Ø18 | 6-M10-Ø240 | 100KG | 11KW | 40/min | L140MM | Magnesium Oxide Bond Silicon Carbide abrasive (L140) | According to customer's requirement,manual or auto oiling are available with Great Wall 00#reducer grease. |
* [Note] The above data are standard parameters and will not be notified if they are changed in the future.
* To the extent permitted by law, Foshan Nanhai Haiyu Electromechanical Industry Co., Ltd. reserves the right of final interpretation of all data.
