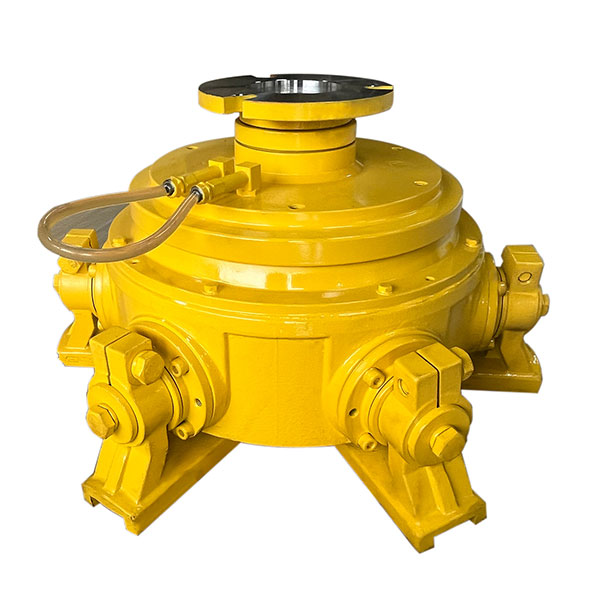

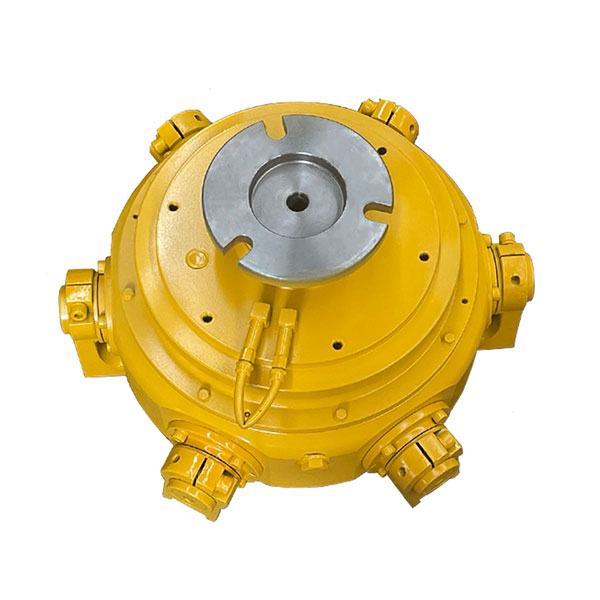

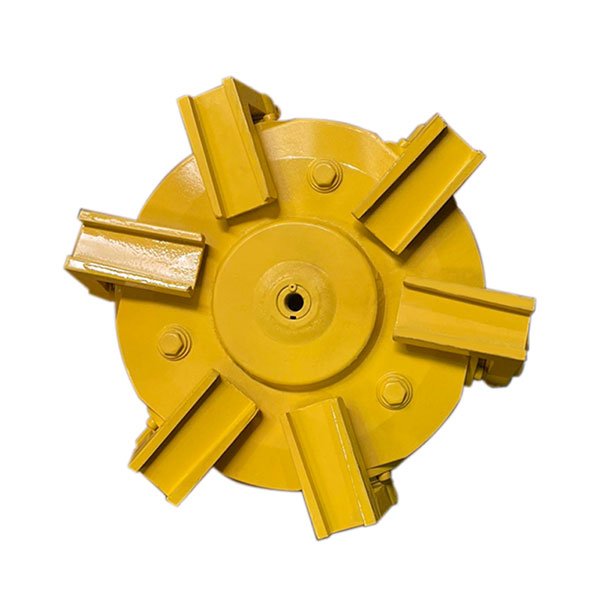

HY270 gear system polishing head
HY270齿轮系统抛光磨头
Product Description产品简介
HY270-6 the Gear System polishing head which is used the Multi-angel Gear driver system with stable structure,easy to maintain and has a low failure rate.It is widely used in porcelain polishing tile production line and stone polished production line on fine polishing.(Not for Coarse for grinding or on flawed surfaces once out for granite).
Application Scope应用范围

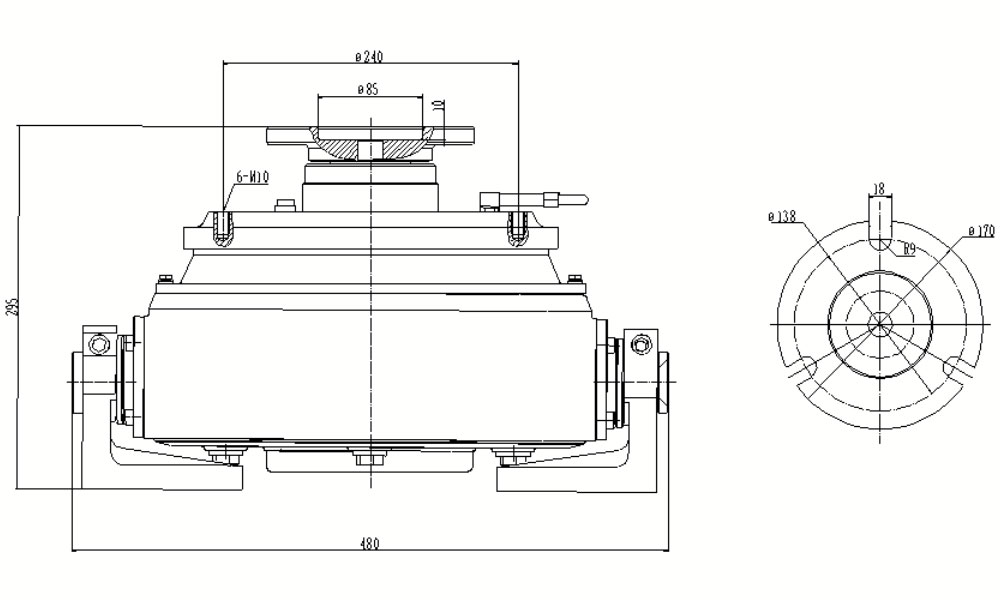

Product Specification产品规格
| Model | Polishing grinding block | Body material | MAX. rotary diameter | MIN. head rotation speed | MAX. head rotation speed | Overall height | Diameter of main shaft | DIA. For mounting spigot of main shaft | Connecting hold for main shaft | Center distance | Net weight | Matching power | Swing frequency of grinding block feet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HY270 | 6 PCS | CAST IRON | Ø520mm/480mm | 400 RPM/MIN. | 550 RPM/MIN. | 292MM | Ø170MM | Ø85MM | 3 x Ø18 | 6-M10-Ø240 | 100KG | 11KW | 60/min |
* [Note] The above data are standard parameters and will not be notified if they are changed in the future.
* To the extent permitted by law, Foshan Nanhai Haiyu Electromechanical Industry Co., Ltd. reserves the right of final interpretation of all data.

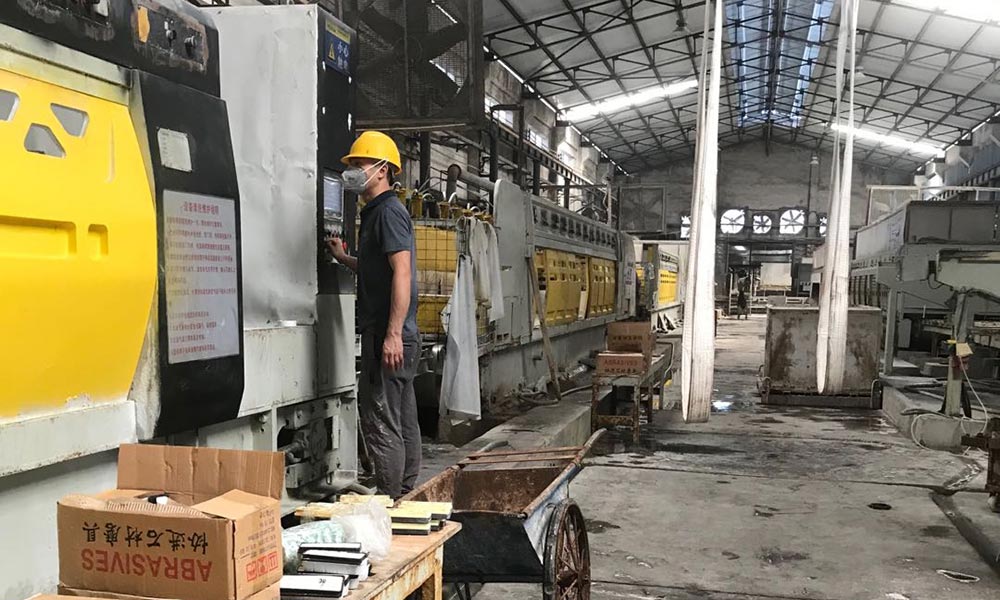

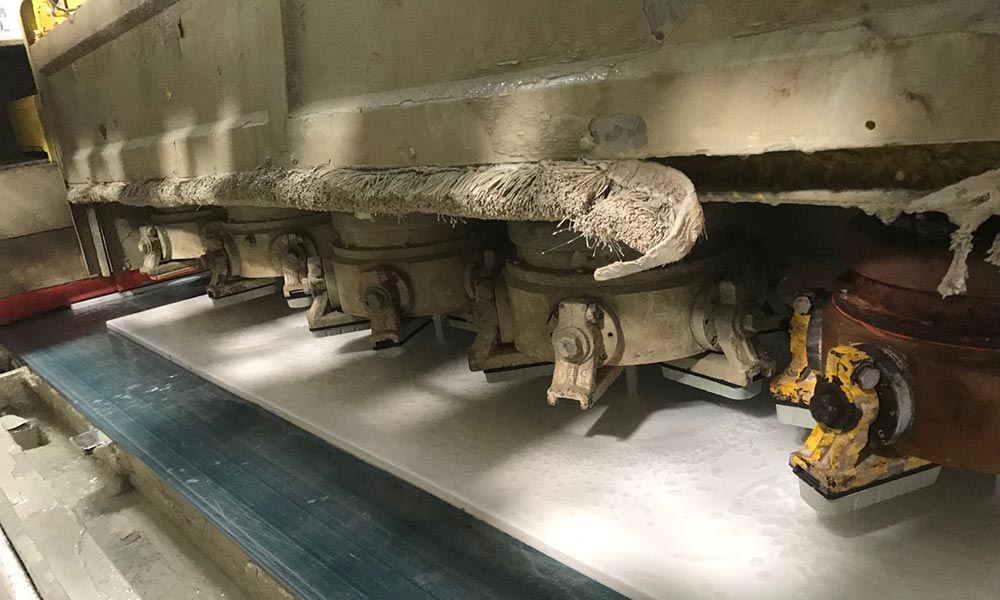

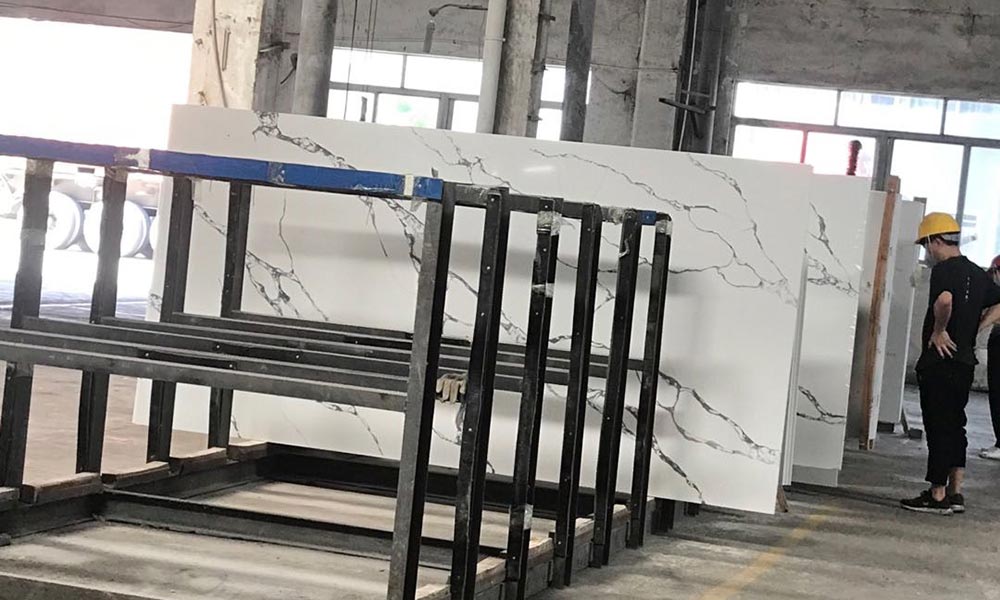

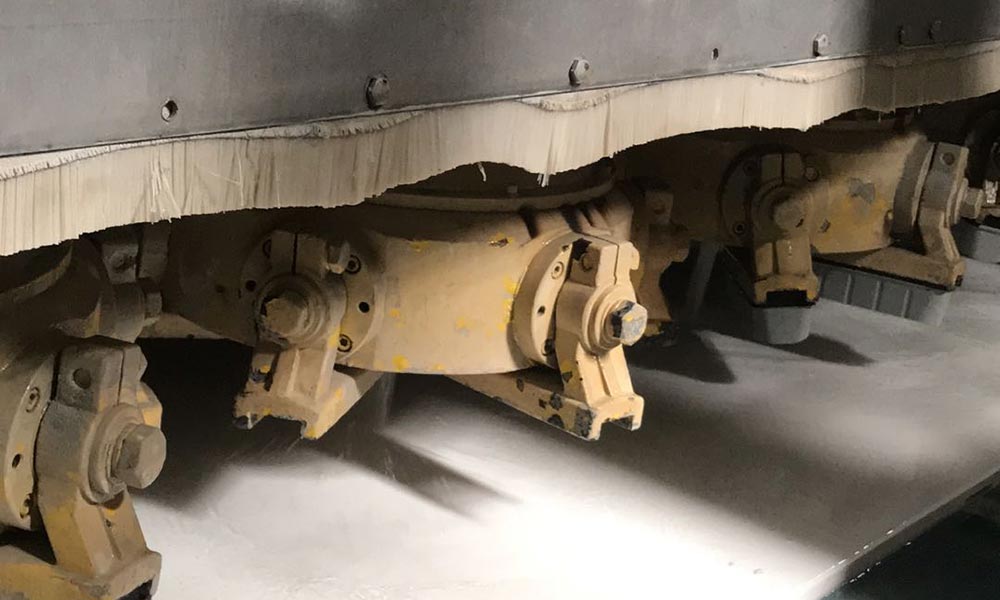

Applications应用场景
Request A Quote获取报价
