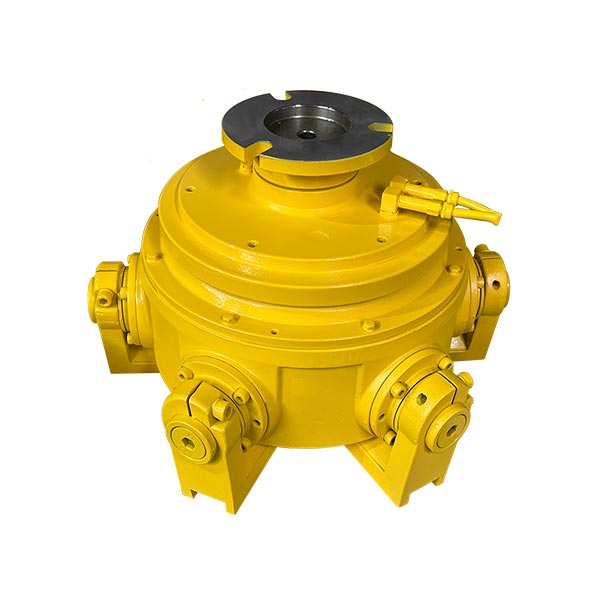

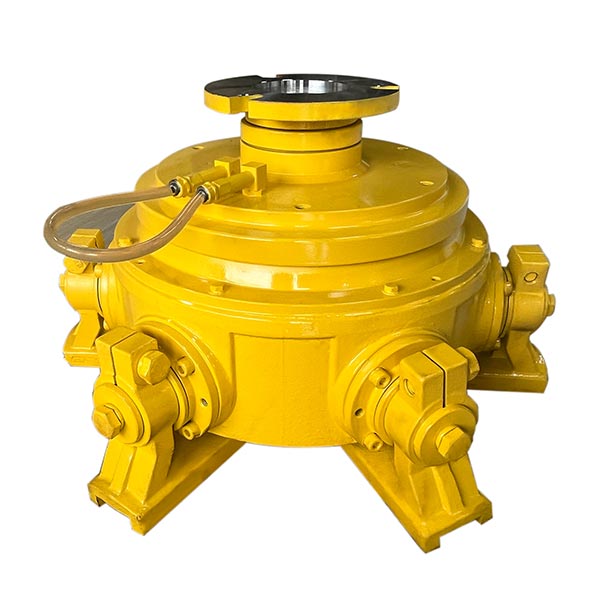

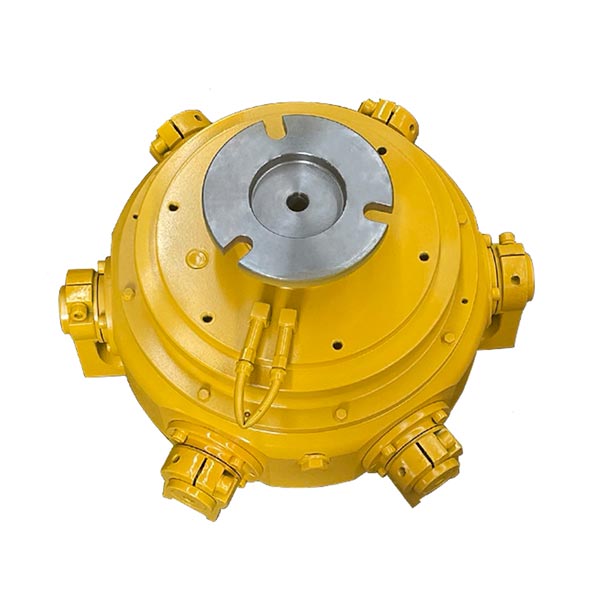

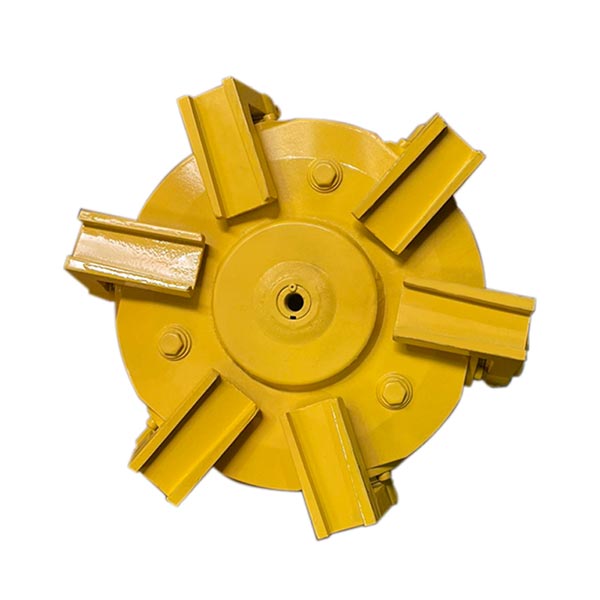

HY290 cam system polishing head

HY290凸轮系统抛光磨头

HY290-6 the CAM SYSTEM polishing head which is stable in structure, easy to maintain and has a low failure rate. It is widely used in porcelain polished tile production line and stone production line....

Get Quotes Online Consulting Contact Us

13380269599 WeChat

Product Description产品简介

Application Scope应用范围

Product Specification产品规格

Please swipe left and right to view the following product specification parameters.

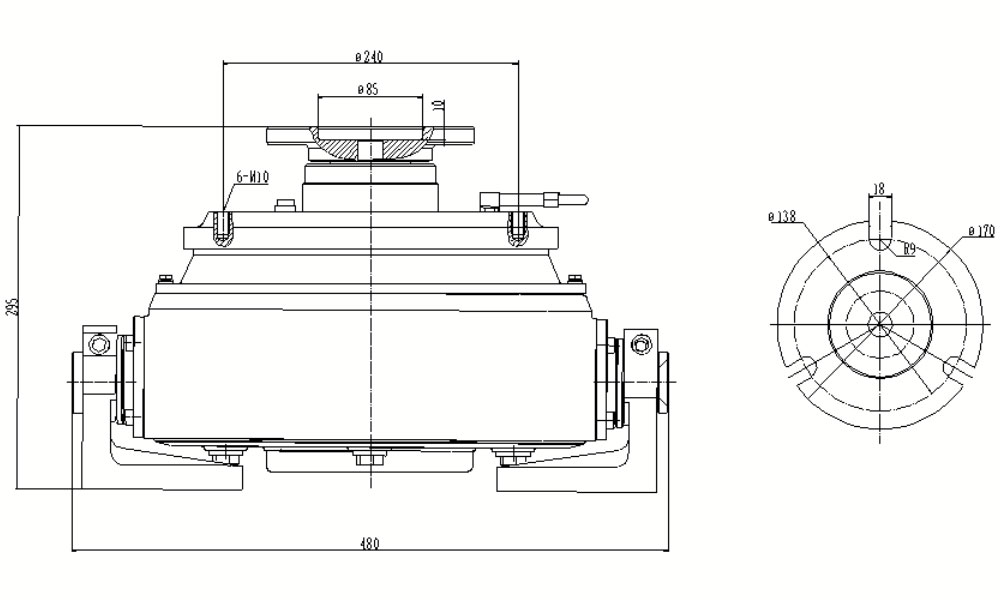

Model	Polishing grinding block	Body material	MAX. rotary diameter	MIN. head rotation speed	MAX. head rotation speed	Overall height	Section holder length	Diameter of main shaft	DIA. For mounting spigot of main shaft	Connecting hold for main shaft	Center distance	Net weight	Matching power	Swing frequency of grinding block feet
HY290	6 PCS	CAST ALUMINUM ALLOY / CAST IRON	Ø520mm/490mm/480mm	500-550RPM/MIN.	500-550RPM/MIN.	286MM	165MM	Ø170MM	Ø85MM	3 x ø18	6-M10-ø240	90KG	11KW	80/min

* [Note] The above data are standard parameters and will not be notified if they are changed in the future.

* To the extent permitted by law, Foshan Nanhai Haiyu Electromechanical Industry Co., Ltd. reserves the right of final interpretation of all data.
