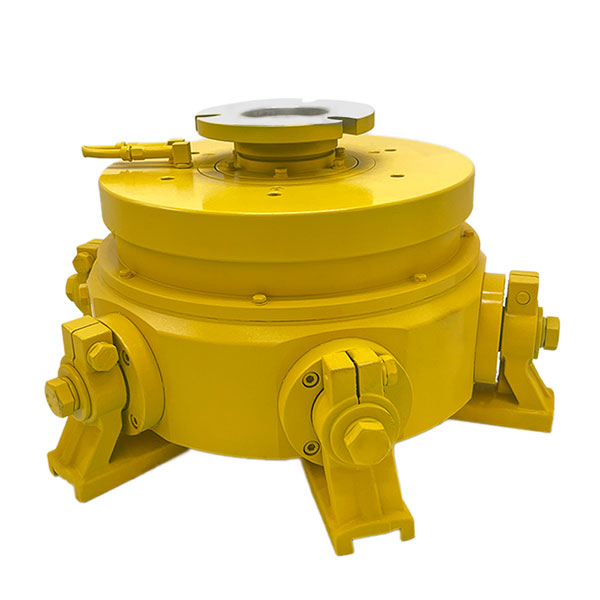

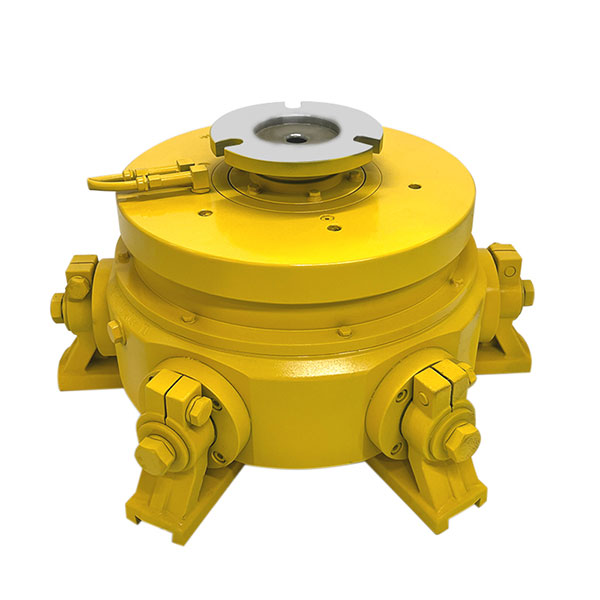

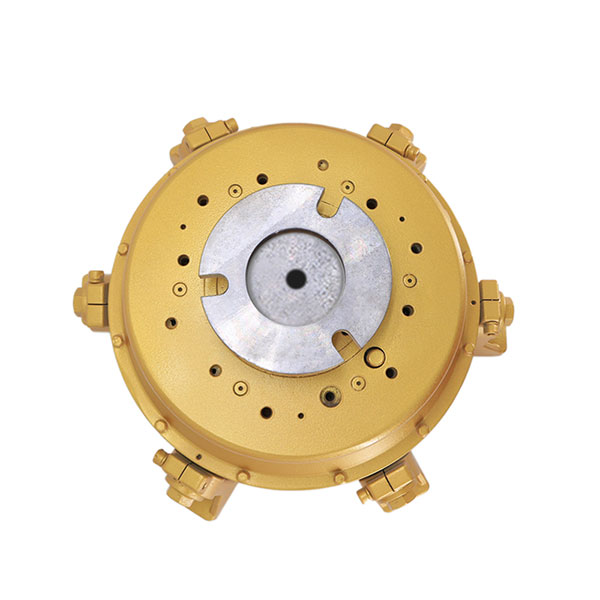

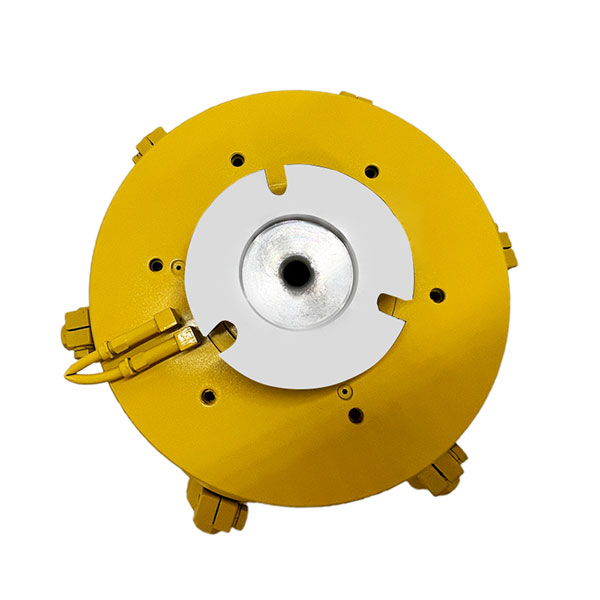

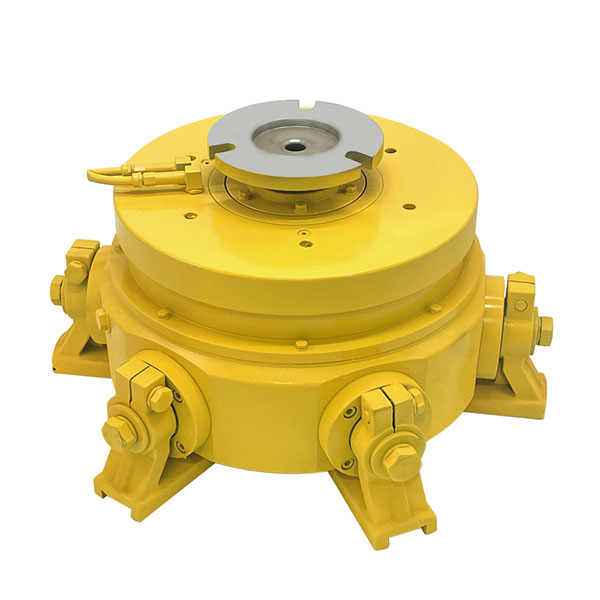

HY268C polishing head

HY268C抛光磨头

13380269599 WeChat

Product Description产品简介

CAM System, Polishing head in the revolution at the same time, of the grinding head spindle driven by differential gear train, the CAM produces a relative rotation to grinding head, as a result of the CAM surface fluctuation change, make active along the pendulum swinging rod rod axis reciprocating swing, driving swinging rod and drive driven placed swing rod (3), the pendulum swinging rod axis grinding block. Applicable primarily to fine polishing.

Application Scope应用范围

Product Specification产品规格

Please swipe left and right to view the following product specification parameters.

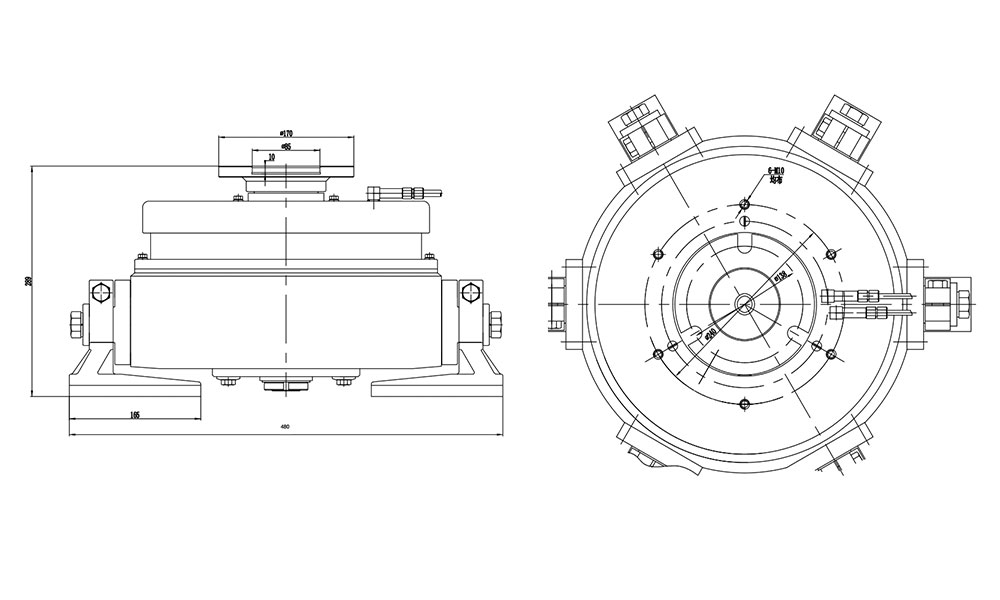

Model	Polishing grinding block	Body material	MAX. rotary diameter	MIN. head rotation speed	MAX. head rotation speed	Overall height	Diameter of main shaft	DIA. For mounting spigot of main shaft	Connecting hold for main shaft	Center distance	Net weight	Matching power	Swing frequency of grinding block feet	Abrasives Length	Griding Block	Lubrication
HY268C	6 PCS	Cast Aluminum Alloy / Cast Iron	Ø544mm	400 RPM/MIN.	520 RPM/MIN.	289MM	Ø170MM	Ø85MM	3 x Ø18	6-M10-Ø240	100KG	11KW	80/min	L140MM	Magnesium Oxide Bond Silicon Carbide abrasive TL140-	According to customer's requirement,manual or auto oiling are available with Great Wall 00#reducer grease.
